A2000

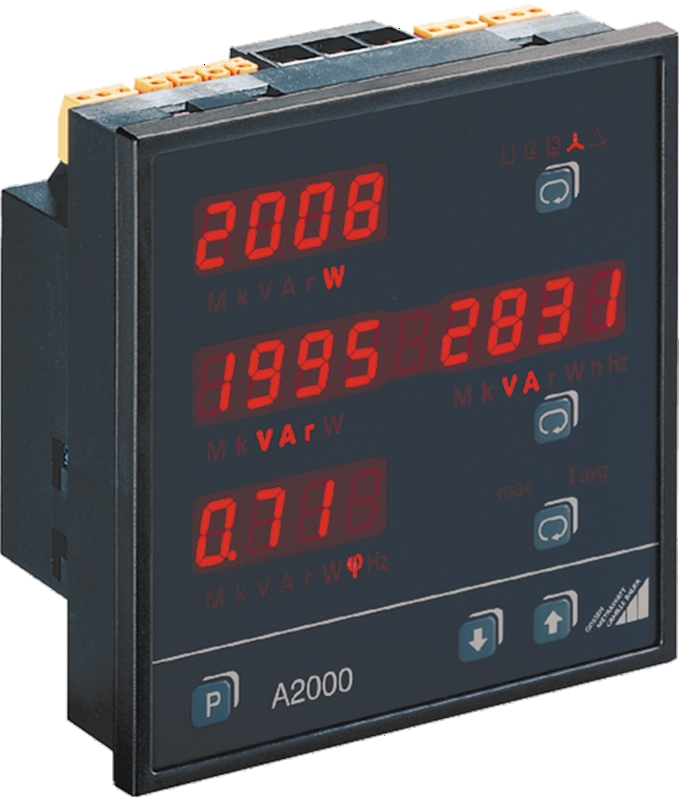

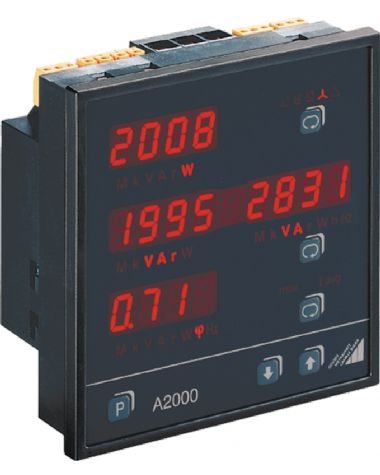

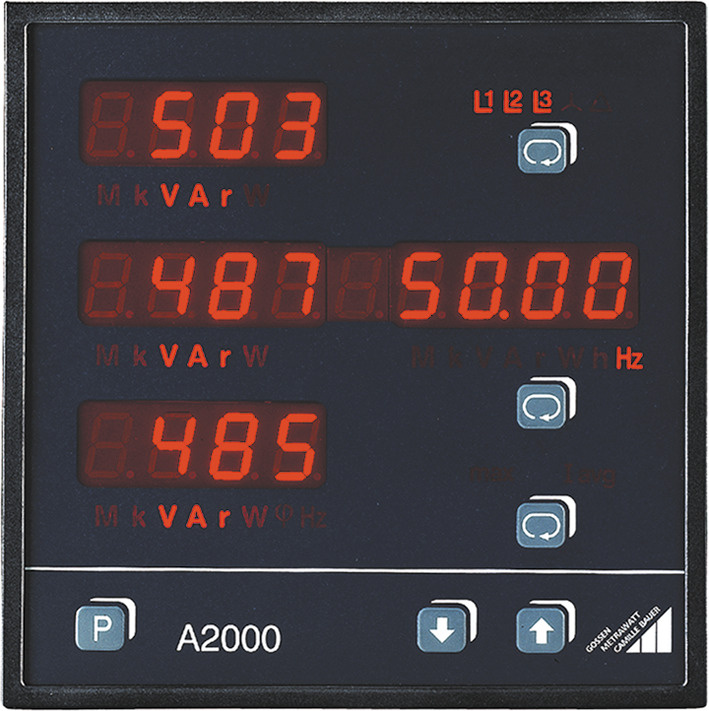

The A2000 multifunctional power meter measures all values for three-phase systems.
-
2 Analog inputs for standard signal or Pt1000 sensors e.g. for temperature measurements at transformators
-
Data logger with 250.000 entries
-
Connection with Kieback&Peter DDC3000 via SBM51/13
-

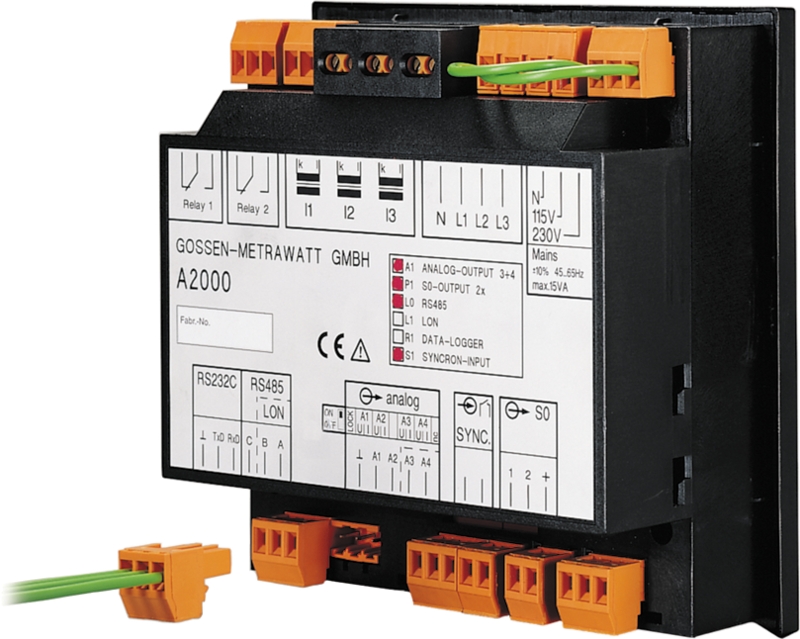

RS 232 and RS 485 interfaces included
-
Versions available for PROFIBUS, Modbus, LON and Ethernet
-
Minimal installation depth of less than 60 mm
-
Adjustable voltage and current transformer ratios
-
A single device for 1 A and 5 A current transformers
-
Limit value and analog outputs included as standard equipment
-
2 pulse outputs for read-out of active and reactive energy
-
Data memory for continuous recording of measurement values or for events recording - 8 years puffered
-
List of 98 available measuring quantities
-
Additional range of power supply 20 .. 27 VAC / 45 .. 450 Hz and 20 .. 36 VDC
-
Lan/ Web access via TCP/IP network adapter (accessories - NETBOX)
-
3 Years Warranty
-
Made in Germany
